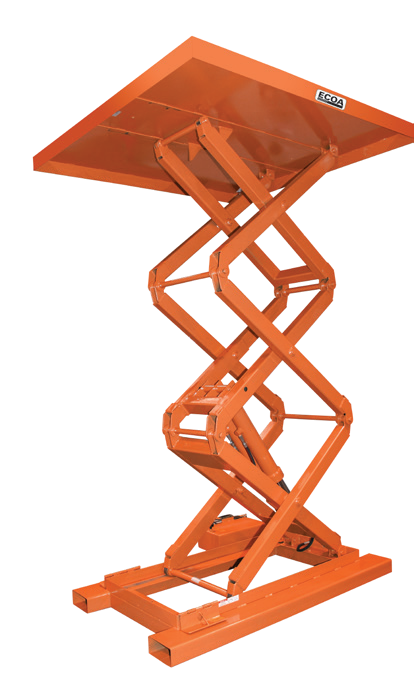

ECOA DSL, TSL and QSL High-Travel Tables — manufacturer catalog illustration

Open an image to inspect its original detail.

Specifications & options

Vertical Travel (in)	Model / configuration	Capacity (lbs.)	End/Side Capacity (lbs)	Standard Platform (in.)	Max Platform (in)	Base (in)	Low Height (in)	Raised Height (in)	Motor (HP)	Ship Weight (lbs.)
60	DSL-20-060	2000	1000	30 x 48	48 x 72	30 x 48	10¼	70	3	1500
60	DSL-40-060	4000	2000	30 x 48	48 x 72	30 x 48	11¾	72	3	1800
60	DSL-60-060	6000	3000	30 x 48	48 x 72	30 x 48	13¼	73	3	1900
72	DSL-20-072	2000	1000	30 x 60	48 x 84	30 x 60	10¼	82	3	1600
72	DSL-40-072	4000	2000	30 x 60	48 x 84	30 x 60	11¾	84	3	1875
72	DSL-60-072	6000	3000	30 x 60	48 x 84	30 x 60	13¼	85	3	2000
90	DSL-20-090	2000	1000	48 x 72	60 x 96	48 x 72	14	104	3	1900
90	DSL-40-090	4000	2000	48 x 72	60 x 96	48 x 72	14	104	5	2050
90	DSL-60-090	6000	3000	48 x 72	60 x 96	48 x 72	16	106	5	2350
108	DSL-20-108	2000	1000	54 x 84	72 x 108	54 x 84	14	122	5	2700
108	DSL-40-108	4000	2000	54 x 84	72 x 108	54 x 84	14	122	5	3100
108	DSL-60-108	6000	3000	54 x 84	72 x 108	54 x 84	16	124	5	3700
120	DSL-20-120	2000	1000	54 x 96	72 x 120	54 x 96	14	134	5	3400
120	DSL-40-120	4000	2000	54 x 96	72 x 120	54 x 96	14	134	5	3800
120	DSL-60-120	6000	3000	54 x 96	72 x 120	54 x 96	16	136	5	4200
144	DSL-20-144	2000	1000	54 x 108	72 x 132	54 x 108	16	160	5	3600
144	DSL-40-144	4000	2000	54 x 108	72 x 132	54 x 108	16	160	5	4000
144	DSL-60-144	6000	3000	54 x 108	72 x 132	54 x 108	18	162	5	4500
96	TSL-30-096	3000	1500	30 x 48	48 x 72	30 x 48	14¼	110¼	3	2400
96	TSL-60-096	6000	3000	30 x 48	48 x 72	30 x 48	21¼	117¼	3	2850
120	TSL-30-120	3000	1500	30 x 60	48 x 84	30 x 60	14¼	134¼	3	2550
120	TSL-60-120	6000	3000	30 x 60	48 x 84	30 x 60	21¼	141¼	3	3000
144	TSL-30-144	3000	1500	48 x 72	60 x 96	48 x 72	19¼	163¼	5	3000
144	TSL-60-144	6000	3000	48 x 72	60 x 96	48 x 72	22¼	166¼	5	3500
180	TSL-30-180	3000	1500	60 x 96	84 x 120	60 x 96	42	222	5	6500
180	TSL-60-180	6000	3000	60 x 96	84 x 120	60 x 96	42	222	5	8000
240	QSL-30-240	3000	1500	60 x 96	84 x 120	60 x 93	54	294	5	7500
240	QSL-60-240	6000	3000	60 x 96	84 x 120	60 x 93	54	294	5	9000
288	QSL-30-288	3000	1500	60 x 120	84 x 144	60 x 112	68	356	5	8000
288	QSL-60-288	6000	3000	60 x 120	84 x 144	60 x 112	68	356	5	10850

Manufacturer	Presto
Catalog range	ECOA DSL, TSL and QSL High-Travel Tables
Documented configurations	30

Source: Presto General Catalog 2026, PDF page 26. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

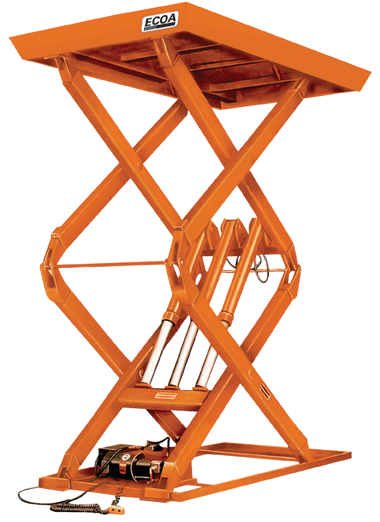

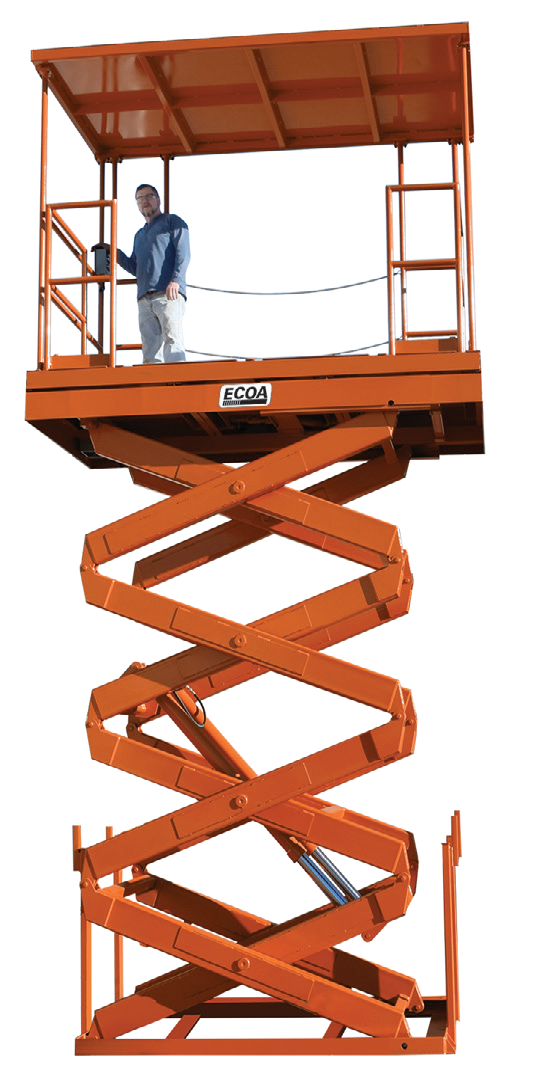

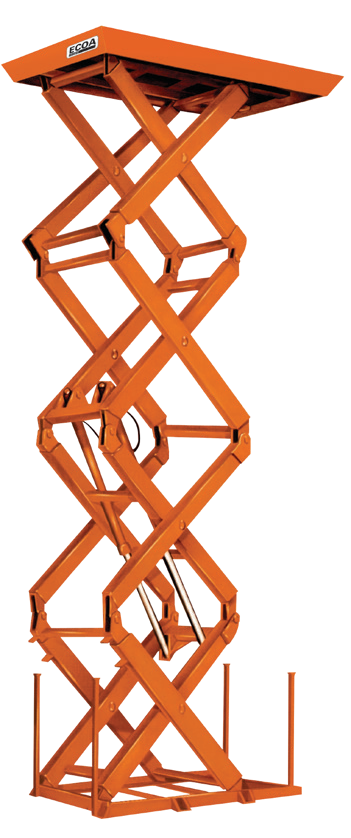

DSL, TSL and QSL tables use double, triple and quad scissor assemblies for extended vertical travel.

Choose travel and load first, then compare collapsed height, raised height and end/side rating. Include access, guarding and foundation constraints when requesting model-specific drawings.

Documentation & drawings

Reference: Presto General Catalog 2026, PDF page 26. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a ECOA DSL, TSL and QSL High-Travel Tables configuration?

Choose travel and load first, then compare collapsed height, raised height and end/side rating. Include access, guarding and foundation constraints when requesting model-specific drawings.

What should I provide for a ECOA DSL, TSL and QSL High-Travel Tables quote?

For ECOA DSL, TSL and QSL High-Travel Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.

Scissor Lifts & Lift Tables

Presto ECOA DSL, TSL and QSL High-Travel Tables

Manufacturer: Presto

DSL, TSL and QSL tables use double, triple and quad scissor assemblies for extended vertical travel.

Find a model in this family Model for your quote

Select a reference to review its listed specifications. Tables may also include accessories and optional configurations.

Request a configuration quote

Manufacturer: Presto
Catalog range: ECOA DSL, TSL and QSL High-Travel Tables
Documented configurations: 30

Review quote request →

Confirm configuration, quantity, freight and needed-by date with your request.

Questions about the application? (866) 410-7852

Prepare your technical requirements

Include quantity, application, required dimensions and load, power supply, site constraints, delivery address and timing.

For a custom configuration, have drawings or specifications ready. Our team can confirm the file-delivery method with your quote request.
