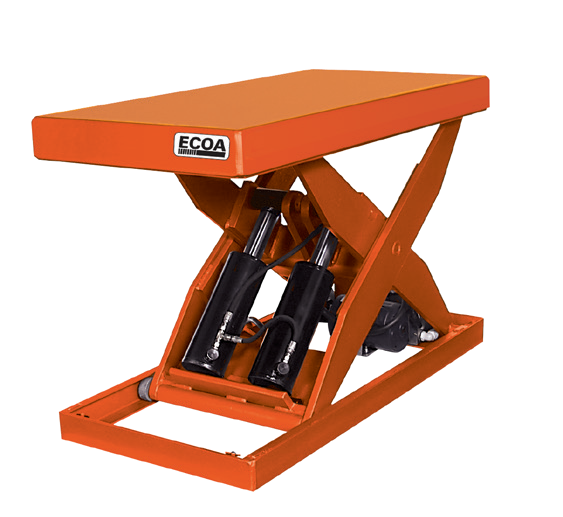

ECOA HH Heavy-Duty Hydraulic Lift Tables — manufacturer catalog illustration

Open an image to inspect its original detail.

Specifications & options

Vertical Travel (in)	Model / configuration	Capacity (lbs.)	End/Side Capacity (lbs.)	Standard Platform (in)	Max Platform (in)	Base (in. approx.)	Low Height (in)	Raised Height (in)	Lifting Speed (sec.)	Motor (HP)	Ship Weight (lbs.)
36	HH-080-36	8000	7000	36 x 48	48 x 72	36 x 48	9¼	45	20	3	1120
36	HH-100-36	10000	7000	36 x 48	48 x 72	36 x 48	9¼	45	23	3	1245
36	HH-120-36	12000	7000	36 x 48	48 x 72	36 x 48	9¼	45	30	3	1350
48	HH-080-48	8000	7000	36 x 64	48 x 88	36 x 64	9¼	57	23	3	1400
48	HH-100-48	10000	7000	36 x 64	48 x 88	36 x 64	9¼	57	35	3	1600
48	HH-120-48	12000	7000	36 x 64	48 x 88	36 x 64	9¼	57	45	3	1800
60	HH-080-60	8000	7000	36 x 84	48 x 102	36 x 84	10	70	40	3	1700
60	HH-100-60	10000	7000	36 x 84	48 x 102	36 x 84	10	70	45	3	1950
60	HH-120-60	12000	7000	36 x 84	48 x 102	36 x 84	10	70	60	3	2200

Manufacturer	Presto
Catalog range	ECOA HH Heavy-Duty Hydraulic Lift Tables
Documented configurations	9
End/Side Capacity (lbs.)	7000
Motor (HP)	3

Source: Presto General Catalog 2026, PDF page 22. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

ECOA HH tables provide 8000, 10000 and 12000 lb heavy-duty positioning choices with separate overall and end/side limits.

Compare 36, 48 and 60 in travel with base and platform dimensions. The source describes a 3 HP three-phase unit and 24V operating controls; confirm supply for the selected installation.

Documentation & drawings

Reference: Presto General Catalog 2026, PDF page 22. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a ECOA HH Heavy-Duty Hydraulic Lift Tables configuration?

Compare 36, 48 and 60 in travel with base and platform dimensions. The source describes a 3 HP three-phase unit and 24V operating controls; confirm supply for the selected installation.

What should I provide for a ECOA HH Heavy-Duty Hydraulic Lift Tables quote?

For ECOA HH Heavy-Duty Hydraulic Lift Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.

Scissor Lifts & Lift Tables

Presto ECOA HH Heavy-Duty Hydraulic Lift Tables

Manufacturer: Presto

ECOA HH tables provide 8000, 10000 and 12000 lb heavy-duty positioning choices with separate overall and end/side limits.

Find a model in this family Model for your quote

Select a reference to review its listed specifications. Tables may also include accessories and optional configurations.

Request a configuration quote

Manufacturer: Presto
Catalog range: ECOA HH Heavy-Duty Hydraulic Lift Tables
Documented configurations: 9
End/Side Capacity (lbs.): 7000
Motor (HP): 3

Review quote request →

Confirm configuration, quantity, freight and needed-by date with your request.

Questions about the application? (866) 410-7852

Prepare your technical requirements

Include quantity, application, required dimensions and load, power supply, site constraints, delivery address and timing.

For a custom configuration, have drawings or specifications ready. Our team can confirm the file-delivery method with your quote request.
