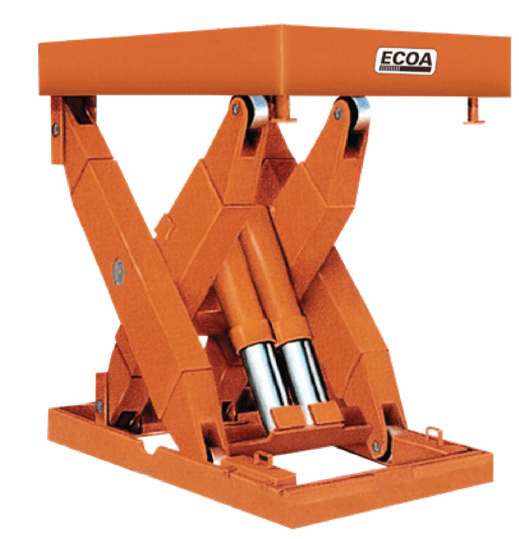

ECOA MLT Super Heavy-Duty Lift Tables — manufacturer catalog illustration

Open an image to inspect its original detail.

Specifications & options

Vertical Travel (in)Model / configurationCapacity (lbs.)End/Side Capacity (lbs.)Standard Platform (in)Max Platform (in)Base (in)Low Height (in)Raised Height (in)Lifting Speed (sec.)Motor (HP)Ship Weight (lbs)
36MLT-15-36150001200048 x 6072 x 8448 x 6016523053500
36MLT-20-36200001600048 x 6072 x 8448 x 6020563053700
36MLT-25-36250002400048 x 6072 x 8448 x 6020564053800
36MLT-30-36300002400048 x 6072 x 8448 x 6020564053900
48MLT-15-48150001200048 x 7272 x 9648 x 7216643053700
48MLT-20-48200001600048 x 7272 x 9648 x 7220683054100
48MLT-25-48250002400048 x 7272 x 9648 x 7220684054200
48MLT-30-48300002400048 x 7272 x 9648 x 7220684054400
60MLT-15-60150001200048 x 8472 x 10848 x 8416764554000
60MLT-20-60200001600048 x 8472 x 10848 x 8420804554300
60MLT-25-60250002400048 x 8472 x 10848 x 8420806054400
60MLT-30-60300002400048 x 8472 x 10848 x 8420806054600
72MLT-15-72150001200048 x 10872 x 13248 x 10816884554800
72MLT-20-72200001600048 x 10872 x 13248 x 10820924555000
72MLT-25-72250002400048 x 10872 x 13248 x 10820926055100
72MLT-30-72300002400048 x 10872 x 13248 x 10820926055200
ManufacturerPresto
Catalog rangeECOA MLT Super Heavy-Duty Lift Tables
Documented configurations16
Motor (HP)5

Source: Presto General Catalog 2026, PDF page 24. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

MLT hydraulic tables position heavy loads on a single-frame platform, with multiple travel and capacity combinations.

Compare overall rating with the separate end/side limit. Collapsed height, base geometry and motor size change by model and need to be checked for the installation.

Documentation & drawings

Reference: Presto General Catalog 2026, PDF page 24. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a ECOA MLT Super Heavy-Duty Lift Tables configuration?

Compare overall rating with the separate end/side limit. Collapsed height, base geometry and motor size change by model and need to be checked for the installation.

What should I provide for a ECOA MLT Super Heavy-Duty Lift Tables quote?

For ECOA MLT Super Heavy-Duty Lift Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
