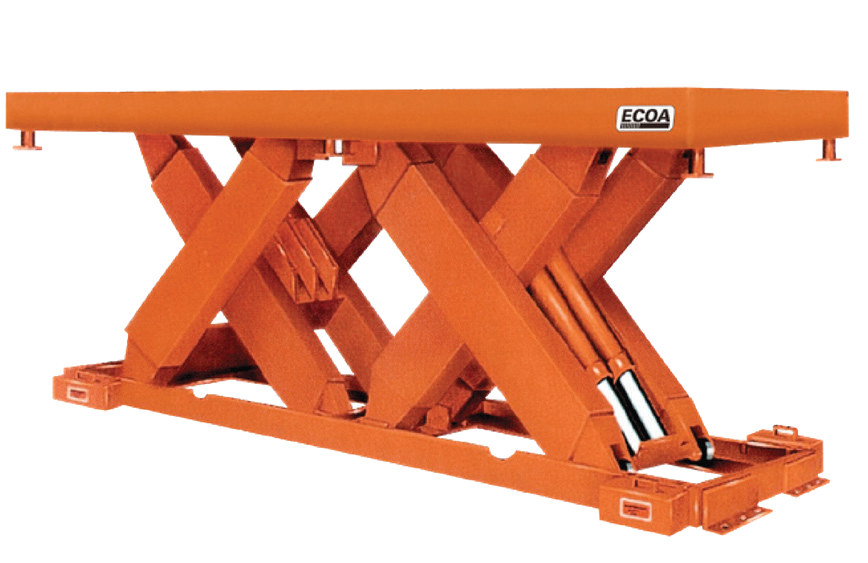

ECOA MLTDL Double-Long Lift Tables — manufacturer catalog illustration

Open an image to inspect its original detail.

Specifications & options

Vertical Travel (in)	Model / configuration	Capacity (lbs.)	End/Side Capacity (lbs)	Standard Platform (in)	Max Platform (in)	Base (in)	Low Height (in)	Raised Height (in)	Lifting Speed (sec.)	Motor (HP)	Ship Weight (lbs.)
36	MLTDL-30-36	30000	22500	48 x 120	72 x 168	48 x 120	16	52	32	5	7200
36	MLTDL-40-36	40000	30000	48 x 120	72 x 168	48 x 120	20	56	55	5	7500
36	MLTDL-60-36	60000	48000	48 x 120	72 x 168	48 x 120	20	56	75	5	7800
48	MLTDL-30-48	30000	22500	48 x 144	72 x 192	48 x 144	16	64	30	5	7500
48	MLTDL-40-48	40000	30000	48 x 144	72 x 192	48 x 144	20	68	55	5	8100
48	MLTDL-60-48	60000	48000	48 x 144	72 x 192	48 x 144	20	68	75	5	8600
60	MLTDL-30-60	30000	22500	48 x 168	72 x 216	48 x 168	16	76	45	5	8000
60	MLTDL-40-60	40000	30000	48 x 168	72 x 216	48 x 168	20	80	80	5	8400
60	MLTDL-60-60	60000	48000	48 x 168	72 x 216	48 x 168	20	80	100	7½	9000
72	MLTDL-30-72	30000	22500	48 x 216	72 x 264	48 x 216	16	88	45	5	9700
72	MLTDL-40-72	40000	30000	48 x 216	72 x 264	48 x 216	20	92	80	5	10000
72	MLTDL-60-72	60000	48000	48 x 216	72 x 264	48 x 216	20	92	100	7½	10400

Manufacturer	Presto
Catalog range	ECOA MLTDL Double-Long Lift Tables
Documented configurations	12

Source: Presto General Catalog 2026, PDF page 25. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

MLTDL tables use extended double-long platforms to position heavy loads with long footprints.

Choose travel and capacity, then verify standard versus maximum deck size and end/side limits. Provide the center of gravity and transfer method for foundation and loading review.

Documentation & drawings

Reference: Presto General Catalog 2026, PDF page 25. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a ECOA MLTDL Double-Long Lift Tables configuration?

Choose travel and capacity, then verify standard versus maximum deck size and end/side limits. Provide the center of gravity and transfer method for foundation and loading review.

What should I provide for a ECOA MLTDL Double-Long Lift Tables quote?

For ECOA MLTDL Double-Long Lift Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.

Scissor Lifts & Lift Tables

Presto ECOA MLTDL Double-Long Lift Tables

Manufacturer: Presto

MLTDL tables use extended double-long platforms to position heavy loads with long footprints.

Find a model in this family Model for your quote

Select a reference to review its listed specifications. Tables may also include accessories and optional configurations.

Request a configuration quote

Manufacturer: Presto
Catalog range: ECOA MLTDL Double-Long Lift Tables
Documented configurations: 12

Review quote request →

Confirm configuration, quantity, freight and needed-by date with your request.

Questions about the application? (866) 410-7852

Prepare your technical requirements

Include quantity, application, required dimensions and load, power supply, site constraints, delivery address and timing.

For a custom configuration, have drawings or specifications ready. Our team can confirm the file-delivery method with your quote request.
