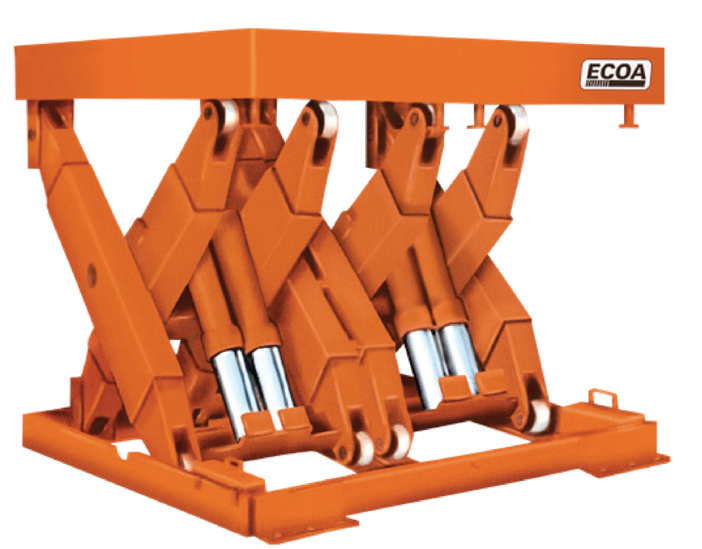

ECOA MLTDW Double-Wide Lift Tables — manufacturer catalog illustration

Open an image to inspect its original detail.

Specifications & options

Vertical Travel (in)Model / configurationCapacity (lbs.)End/Side Capacity (lbs.)Standard Platform (in)Max Platform (in)Base (in)Low Height (in)Raised Height (in)Lifting Speed (sec.)Motor (HP)Ship Weight (lbs)
36MLTDW-30-36300002400096 x 60120 x 8496 x 6016523257200
36MLTDW-40-36400003200096 x 60120 x 8496 x 6020565557500
36MLTDW-60-36600004800096 x 60120 x 8496 x 6020567557800
48MLTDW-30-48300002400096 x 72120 x 9696 x 7216643057500
48MLTDW-40-48400003200096 x 72120 x 9696 x 7220685558100
48MLTDW-60-48600004800096 x 72120 x 9696 x 7220687558600
60MLTDW-30-60300002400096 x 84120 x 10896 x 8416764558000
60MLTDW-40-60400003200096 x 84120 x 10896 x 8420808058400
60MLTDW-60-60600004800096 x 84120 x 10896 x 8420801007½9000
72MLTDW-30-72300002400096 x 108120 x 13296 x 10816884559700
72MLTDW-40-72400003200096 x 108120 x 13296 x 108209280510000
72MLTDW-60-72600004800096 x 108120 x 13296 x 10820921007½10400
ManufacturerPresto
Catalog rangeECOA MLTDW Double-Wide Lift Tables
Documented configurations12

Source: Presto General Catalog 2026, PDF page 24. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

MLTDW extends the heavy-duty lift arrangement across a broad double-wide platform for large load footprints.

Compare the 96 x 60 in standard deck with the workpiece, then check model-specific travel and side-load limits. Rated capacity and shipping weight are distinct specifications.

Documentation & drawings

Reference: Presto General Catalog 2026, PDF page 24. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a ECOA MLTDW Double-Wide Lift Tables configuration?

Compare the 96 x 60 in standard deck with the workpiece, then check model-specific travel and side-load limits. Rated capacity and shipping weight are distinct specifications.

What should I provide for a ECOA MLTDW Double-Wide Lift Tables quote?

For ECOA MLTDW Double-Wide Lift Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
