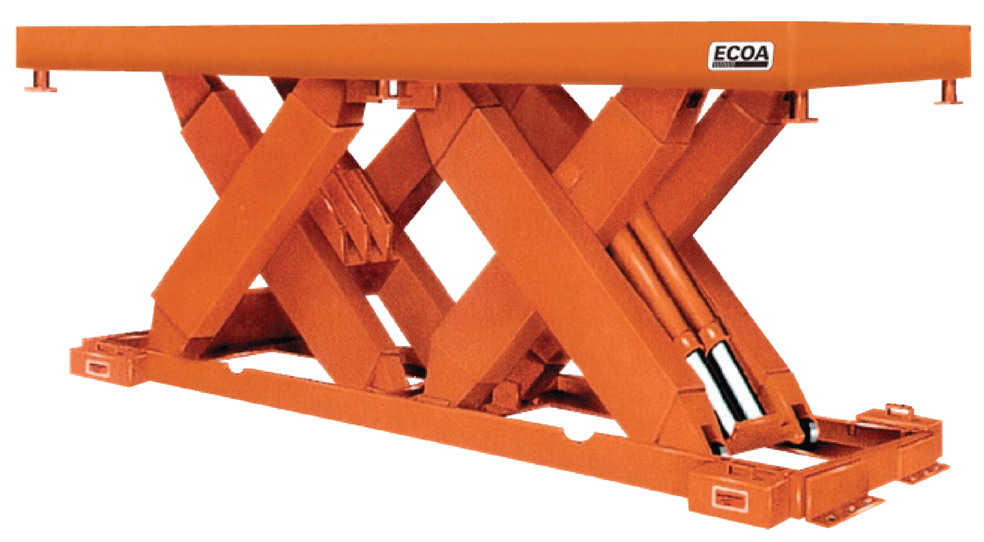

ECOA MLTQD Quad-Frame Lift Tables — manufacturer catalog illustration

Open an image to inspect its original detail.

Specifications & options

Vertical Travel (in)	Model / configuration	Capacity (lbs.)	End/Side Capacity (lbs)	Standard Platform (in)	Max Platform (in)	Base (in)	Low Height (in)	Raised Height (in)	Lifting Speed (sec.)	Motor (HP)	Ship Weight (lbs.)
36	MLTQD-80-36	80000	64000	96 x 120	120 x 168	96 x 120	20	56	80	10	15000
36	MLTQD-120-36	120000	96000	96 x 120	120 x 168	96 x 120	20	56	110	10	15600
48	MLTQD-80-48	80000	64000	96 x 144	120 x 192	96 x 144	20	68	80	10	16200
48	MLTQD-120-48	120000	96000	96 x 144	120 x 192	96 x 144	20	68	110	10	17200
60	MLTQD-80-60	80000	64000	96 x 168	120 x 216	96 x 168	20	80	120	10	16800
60	MLTQD-120-60	120000	96000	96 x 168	120 x 216	96 x 168	20	80	120	15	18000
72	MLTQD-80-72	80000	64000	96 x 216	120 x 264	96 x 216	20	92	120	10	20000
72	MLTQD-120-72	120000	96000	96 x 216	120 x 264	96 x 216	20	92	120	15	20800

Manufacturer	Presto
Catalog range	ECOA MLTQD Quad-Frame Lift Tables
Documented configurations	8
Low Height (in)	20

Source: Presto General Catalog 2026, PDF page 25. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

MLTQD combines heavy-duty mechanisms beneath a broad extended deck for especially large load footprints.

Compare listed 80000 and 120000 lb configurations by travel, platform and motor. Both deck capacity and end/side rating require review of actual load distribution.

Documentation & drawings

Reference: Presto General Catalog 2026, PDF page 25. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a ECOA MLTQD Quad-Frame Lift Tables configuration?

Compare listed 80000 and 120000 lb configurations by travel, platform and motor. Both deck capacity and end/side rating require review of actual load distribution.

What should I provide for a ECOA MLTQD Quad-Frame Lift Tables quote?

For ECOA MLTQD Quad-Frame Lift Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.

Scissor Lifts & Lift Tables

Presto ECOA MLTQD Quad-Frame Lift Tables

Manufacturer: Presto

MLTQD combines heavy-duty mechanisms beneath a broad extended deck for especially large load footprints.

Find a model in this family Model for your quote

Select a reference to review its listed specifications. Tables may also include accessories and optional configurations.

Request a configuration quote

Manufacturer: Presto
Catalog range: ECOA MLTQD Quad-Frame Lift Tables
Documented configurations: 8
Low Height (in): 20

Review quote request →

Confirm configuration, quantity, freight and needed-by date with your request.

Questions about the application? (866) 410-7852

Prepare your technical requirements

Include quantity, application, required dimensions and load, power supply, site constraints, delivery address and timing.

For a custom configuration, have drawings or specifications ready. Our team can confirm the file-delivery method with your quote request.
