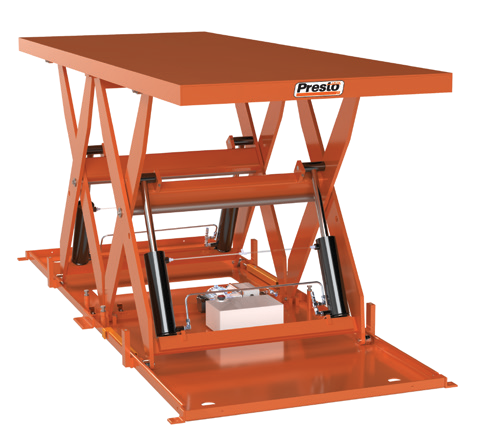

Wide-Base Tandem Scissor Lift Tables — manufacturer catalog illustration

Open an image to inspect its original detail.

Specifications & options

Model / configurationLoad CapacityRaised HeightLowered HeightStd. Base & PlatformMaximum PlatformLifting SpeedStandard MotorStd. Voltage/ Phase/HzShipping Weight
X3W36T-404000 lbs43"7-3/4"36 x 96"60 x 120"48 sec1-1/2 HP230, 460/3/601620 lbs
X3W36T-808000 lbs43"7-3/4"36 x 96"60 x 120"50 sec1-1/2 HP230, 460/3/601700 lbs
X3W36T-12012000 lbs43"7-3/4"36 x 96"60 x 120"52 sec1-1/2 HP230, 460/3/601820 lbs
X4W48T-404000 lbs55"7-3/4"48 x 128"72 x 168"64 sec1-1/2 HP230, 460/3/602120 lbs
X4W48T-808000 lbs55"7-3/4"48 x 128"72 x 168"68 sec1-1/2 HP230, 460/3/602220 lbs
X4W48T-12012000 lbs55"7-3/4"48 x 128"72 x 168"76 sec1-1/2 HP230, 460/3/602400 lbs
X4.5W60T-404000 lbs70"10"54 x 172"84 x 204"20 sec3 HP230, 460/3/603200 lbs
X4.5W60T-808000 lbs70"10"54 x 172"84 x 204"40 sec3 HP230, 460/3/603350 lbs
X4.5W60T-12012000 lbs70"10"54 x 172"84 x 204"60 sec3 HP230, 460/3/603500 lbs
ManufacturerPresto
Catalog rangeWide-Base Tandem Scissor Lift Tables
Documented configurations9
Std. Voltage/ Phase/Hz230, 460/3/60

Source: Presto General Catalog 2026, PDF page 21. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Wide-base tandem tables combine an extended platform with a broader supporting frame for long, wide fixtures or loads.

X3W36T, X4W48T and X4.5W60T differ in travel, deck and supply. Include the load footprint and eccentric loading when confirming maximum platform dimensions.

Documentation & drawings

Reference: Presto General Catalog 2026, PDF page 21. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a Wide-Base Tandem Scissor Lift Tables configuration?

X3W36T, X4W48T and X4.5W60T differ in travel, deck and supply. Include the load footprint and eccentric loading when confirming maximum platform dimensions.

What should I provide for a Wide-Base Tandem Scissor Lift Tables quote?

For Wide-Base Tandem Scissor Lift Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
