SKU 7-13764
GKS Robot 40 Lift Battery powered remote controlled transport system with integrated lift table
Battery powered remote controlled transport system with integrated lift table
- Power source
- Battery powered
- Loading height
- 9.8 inch
Open an image to inspect its original detail.
Specifications & options
| Model / configuration | Load Capacity | Raised Height | Lowered Height | Degree of Tilt | Standard Base | Maximum Platform | Lifting Speed | Tilting Speed | Shipping Weight |
|---|---|---|---|---|---|---|---|---|---|
| X3WT36-20 | 2000 lbs | 46-3/4" | 11-1/2" | 30°/45° | 36 x 48" | 60 x 60" | 42 sec | 8 sec | 1370 lbs |
| X3WT36-40 | 4000 lbs | 46-3/4" | 11-1/2" | 30°/45° | 36 x 48" | 60 x 60" | 43 sec | 8 sec | 1420 lbs |
| X4WT36-20 | 2000 lbs | 46-3/4" | 11-1/2" | 30°/45° | 48 x 48" | 72 x 60" | 42 sec | 8 sec | 1450 lbs |
| X4WT36-40 | 4000 lbs | 46-3/4" | 11-1/2" | 30°/45° | 48 x 48" | 72 x 60" | 43 sec | 8 sec | 1500 lbs |
| XLT36-10 | 1000 lbs | 49-3/4" | 13-3/4" | 30°/45° | 24 x 48" | 48 x 48" | 20 sec | 15 sec | 1000 lbs |
| XLT36-20 | 2000 lbs | 50-3/4" | 14-3/4" | 30°/45° | 24 x 48" | 50 x 50" | 30 sec | 15 sec | 1100 lbs |
| XLT36-40 | 4000 lbs | 50-3/4" | 14-3/4" | 30°/45° | 24 x 48" | 50 x 50" | 44 sec | 15 sec | 1350 lbs |
| Manufacturer | Presto |
|---|---|

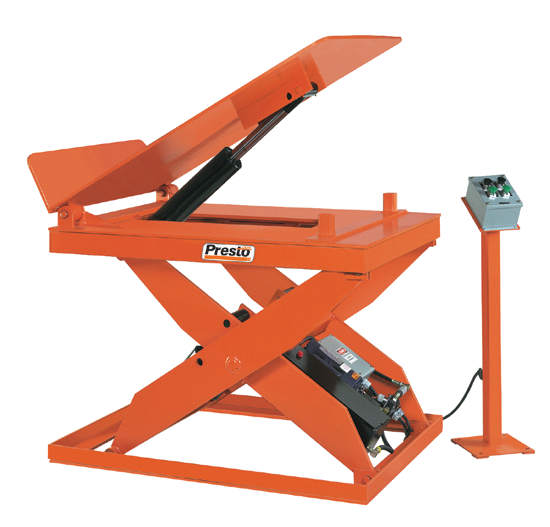

| Catalog range | X-Series Hydraulic Lift-and-Tilt Tables |
| Documented configurations | 7 |
| Degree of Tilt | 30°/45° |
Source: Presto General Catalog 2026, PDF page 29. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview
X-series tables combine vertical positioning and angled presentation, with lift and tilt times listed separately.
Compare X3WT, X4WT and XLT platform and motion dimensions. Supply container height and center of gravity so the full tilting cycle can be reviewed.
Documentation & drawings
Reference: Presto General Catalog 2026, PDF page 29. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a X-Series Hydraulic Lift-and-Tilt Tables configuration?
Compare X3WT, X4WT and XLT platform and motion dimensions. Supply container height and center of gravity so the full tilting cycle can be reviewed.
What should I provide for a X-Series Hydraulic Lift-and-Tilt Tables quote?
For X-Series Hydraulic Lift-and-Tilt Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
