SKU 7-13764
GKS Robot 40 Lift Battery powered remote controlled transport system with integrated lift table
Battery powered remote controlled transport system with integrated lift table
- Power source
- Battery powered
- Loading height
- 9.8 inch
Open an image to inspect its original detail.
Specifications & options
| Model / configuration | Load Capacity | Raised Height | Lowered Height | End/Side Capacity | Std. Base & Platform | Max Platform | Lifting Speed | Std. Motor | Std. Voltage/ Phase/Hz | Shipping Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| X3W24-20 | 2000 lbs | 31" | 7-3/4" | 2000 lbs | 36 x 36" | 60 x 60" | 30 sec | 1 HP | 115/1/60 | 720 lbs |
| X3W24-40 | 4000 lbs | 31" | 7-3/4" | 4000 lbs | 36 x 36" | 60 x 60" | 32 sec | 1 HP | 115/1/60 | 740 lbs |
| X3W24-60 | 6000 lbs | 31" | 7-3/4" | 4500 lbs | 36 x 36" | 60 x 60" | 34 sec | 1 HP | 115/1/60 | 790 lbs |
| X3W36-20 | 2000 lbs | 43" | 7-3/4" | 2000 lbs | 36 x 48" | 60 x 72" | 44 sec | 1 HP | 115/1/60 | 860 lbs |
| X3W36-40 | 4000 lbs | 43" | 7-3/4" | 3500 lbs | 36 x 48" | 60 x 72" | 46 sec | 1 HP | 115/1/60 | 900 lbs |
| X3W36-60 | 6000 lbs | 43" | 7-3/4" | 3500 lbs | 36 x 48" | 60 x 72" | 26 sec | 1-1/2 HP | 230, 460/3/60 | 960 lbs |
| X3W48-20 | 2000 lbs | 55" | 7-3/4" | 2000 lbs | 36 x 64" | 60 x 88" | 32 sec | 1-1/2 HP | 230, 460/3/60 | 1020 lbs |
| X3W48-40 | 4000 lbs | 55" | 7-3/4" | 3500 lbs | 36 x 64" | 60 x 88" | 34 sec | 1-1/2 HP | 230, 460/3/60 | 1070 lbs |
| X3W48-60 | 6000 lbs | 55" | 7-3/4" | 3500 lbs | 36 x 64" | 60 x 88" | 38 sec | 1-1/2 HP | 230, 460/3/60 | 1120 lbs |
| X4W24-20 | 2000 lbs | 31" | 7-3/4" | 2000 lbs | 48 x 36" | 72 x 60" | 30 sec | 1 HP | 115/1/60 | 810 lbs |
| X4W24-40 | 4000 lbs | 31" | 7-3/4" | 4000 lbs | 48 x 36" | 72 x 60" | 32 sec | 1 HP | 115/1/60 | 830 lbs |
| X4W24-60 | 6000 lbs | 31" | 7-3/4" | 4500 lbs | 48 x 36" | 72 x 60" | 34 sec | 1 HP | 115/1/60 | 880 lbs |
| X4W36-20 | 2000 lbs | 43" | 7-3/4" | 2000 lbs | 48 x 48" | 72 x 72" | 44 sec | 1 HP | 115/1/60 | 950 lbs |
| X4W36-40 | 4000 lbs | 43" | 7-3/4" | 3500 lbs | 48 x 48" | 72 x 72" | 46 sec | 1 HP | 115/1/60 | 990 lbs |
| X4W36-60 | 6000 lbs | 43" | 7-3/4" | 3500 lbs | 48 x 48" | 72 x 72" | 26 sec | 1-1/2 HP | 230, 460/3/60 | 1050 lbs |
| X4W48-20 | 2000 lbs | 55" | 7-3/4" | 2000 lbs | 48 x 64" | 72 x 88" | 32 sec | 1-1/2 HP | 230, 460/3/60 | 1110 lbs |
| X4W48-40 | 4000 lbs | 55" | 7-3/4" | 3500 lbs | 48 x 64" | 72 x 88" | 30 sec | 1-1/2 HP | 230, 460/3/60 | 1160 lbs |
| X4W48-60 | 6000 lbs | 55" | 7-3/4" | 3500 lbs | 48 x 64" | 72 x 88" | 38 sec | 1-1/2 HP | 230, 460/3/60 | 1250 lbs |
| X4W48-80 | 8000 lbs | 57" | 9" | 4000 lbs | 48 x 66" | 72 x 88" | 30 sec | 3 HP | 230, 460/3/60 | 1550 lbs |
| X4.5W60-20 | 2000 lbs | 70" | 10" | 1000 lbs | 54 x 86" | 84 x 120" | 10 sec | 3 HP | 230, 460/3/60 | 1650 lbs |
| X4.5W60-40 | 4000 lbs | 70" | 10" | 2000 lbs | 54 x 86" | 84 x 120" | 20 sec | 3 HP | 230, 460/3/60 | 1725 lbs |
| X4.5W60-60 | 6000 lbs | 70" | 10" | 3000 lbs | 54 x 86" | 84 x 120" | 30 sec | 3 HP | 230, 460/3/60 | 1800 lbs |
| X4.5W60-80 | 8000 lbs | 70" | 10" | 4000 lbs | 54 x 86" | 84 x 120" | 42 sec | 3 HP | 230, 460/3/60 | 2150 lbs |
| Manufacturer | Presto |
|---|---|
| Catalog range | X3W and X4W Wide-Base Scissor Tables |
| Documented configurations | 23 |
Source: Presto General Catalog 2026, PDF page 20. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview

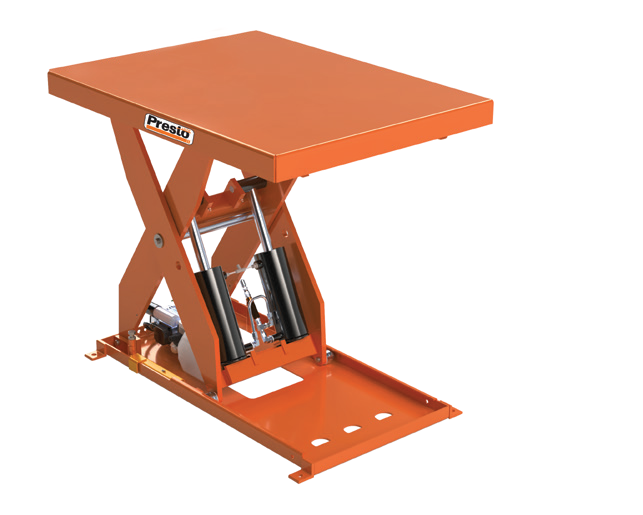

X3W, X4W and X4.5W tables use broader bases to support larger work surfaces in a stationary hydraulic lift arrangement.
Compare footprint, travel and maximum platform dimensions. Electrical supply and end/side capacity change by model, so specify the complete reference with the proposed loading method.
Documentation & drawings
Reference: Presto General Catalog 2026, PDF page 20. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a X3W and X4W Wide-Base Scissor Tables configuration?
Compare footprint, travel and maximum platform dimensions. Electrical supply and end/side capacity change by model, so specify the complete reference with the proposed loading method.
What should I provide for a X3W and X4W Wide-Base Scissor Tables quote?
For X3W and X4W Wide-Base Scissor Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
