SKU 7-13764
GKS Robot 40 Lift Battery powered remote controlled transport system with integrated lift table
Battery powered remote controlled transport system with integrated lift table
- Power source
- Battery powered
- Loading height
- 9.8 inch
Open an image to inspect its original detail.
Specifications & options
| Model / configuration | Load Capacity | Raised Height | Lowered Height | Std. Base & Platform | Maximum Platform | Lifting Speed | Standard Motor | Std. Voltage/ Phase/Hz | Shipping Weight |
|---|---|---|---|---|---|---|---|---|---|
| XL36T-40 | 4000 lbs | 43" | 7-1/4" | 24 x 96" | 48 x 120" | 34 sec | 1 HP | 115/1/60 | 1280 lbs |
| XL36T-80 | 8000 lbs | 43" | 7-1/4" | 24 x 96" | 48 x 120" | 44 sec | 1-1/2 HP | 230, 460/3/60 | 1340 lbs |
| XL36T-120 | 12000 lbs | 43" | 7-1/4" | 24 x 96" | 48 x 120" | 60 sec | 1-1/2 HP | 230, 460/3/60 | 1400 lbs |
| XL48T-40 | 4000 lbs | 55" | 7-1/4" | 24 x 128" | 48 x 168" | 28 sec | 1-1/2 HP | 230, 460/3/60 | 1600 lbs |
| XL48T-80 | 8000 lbs | 55" | 7-1/4" | 24 x 128" | 48 x 168" | 64 sec | 1-1/2 HP | 230, 460/3/60 | 1700 lbs |
| XL48T-120 | 12000 lbs | 55" | 7-1/4" | 24 x 128" | 48 x 168" | 78 sec | 1-1/2 HP | 230, 460/3/60 | 1800 lbs |
| XL60T-40 | 4000 lbs | 70" | 10" | 24 x 172" | 48 x 204" | 20 sec | 3 HP | 230, 460/3/60 | 2500 lbs |
| XL60T-80 | 8000 lbs | 70" | 10" | 24 x 172" | 48 x 204" | 40 sec | 3 HP | 230, 460/3/60 | 2650 lbs |
| XL60T-120 | 12000 lbs | 70" | 10" | 24 x 172" | 48 x 204" | 60 sec | 3 HP | 230, 460/3/60 | 2750 lbs |
| Manufacturer | Presto |
|---|---|
| Catalog range | XL Tandem Scissor Lift Tables |
| Documented configurations | 9 |
Source: Presto General Catalog 2026, PDF page 21. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview

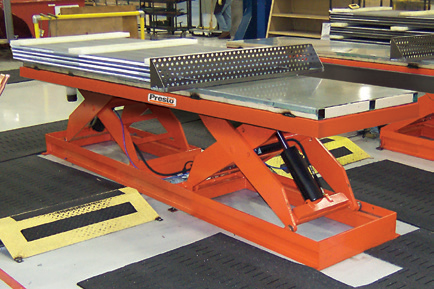

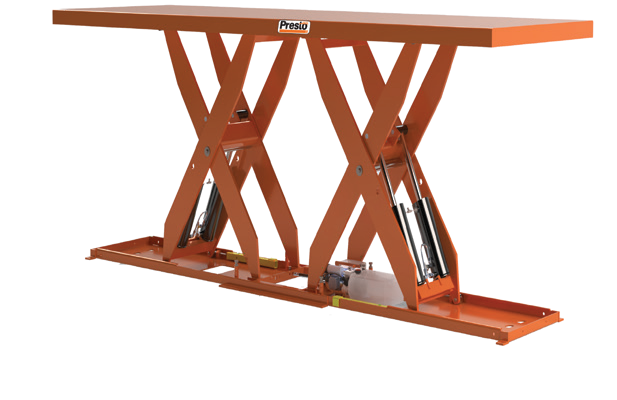

XL tandem tables place scissor assemblies along a long deck for positioning extended workpieces.
Compare 36, 48 and 60 in travel groups and 24 in wide standard platforms. Supply the load distribution across the deck and select the power unit from the exact model row.
Documentation & drawings
Reference: Presto General Catalog 2026, PDF page 21. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a XL Tandem Scissor Lift Tables configuration?
Compare 36, 48 and 60 in travel groups and 24 in wide standard platforms. Supply the load distribution across the deck and select the power unit from the exact model row.
What should I provide for a XL Tandem Scissor Lift Tables quote?
For XL Tandem Scissor Lift Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
