SKU 7-13764
GKS Robot 40 Lift Battery powered remote controlled transport system with integrated lift table
Battery powered remote controlled transport system with integrated lift table
- Power source
- Battery powered
- Loading height
- 9.8 inch
Open an image to inspect its original detail.
Specifications & options
| Model / configuration | Load Capacity | Raised Height | Lowered Height | End/Side Capacity | Std. Base & Platform | Maximum Platform | Lifting Speed | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| XS24-10 | 1000 lbs | 29-1/4" | 5-1/4" | 1000 lbs | 24 x 36" | 36 x 48" | 18 sec | 390 lbs |
| XS24-15 | 1500 lbs | 29-1/4" | 5-1/4" | 1500 lbs | 24 x 36" | 36 x 48" | 23 sec | 395 lbs |
| XS36-10 | 1000 lbs | 41-1/4" | 5-1/4" | 1000 lbs | 24 x 48" | 36 x 60" | 29 sec | 425 lbs |
| XS36-15 | 1500 lbs | 41-1/4" | 5-1/4" | 1500 lbs | 24 x 48" | 36 x 60" | 36 sec | 430 lbs |
| WXS24-10 | 1000 lbs | 29-1/4" | 5-1/4" | 1000 lbs | 36 x 36" | 48 x 48" | 18 sec | 430 lbs |
| WXS24-15 | 1500 lbs | 29-1/4" | 5-1/4" | 1500 lbs | 36 x 36" | 48 x 48" | 23 sec | 435 lbs |
| WXS36-10 | 1000 lbs | 41-1/4" | 5-1/4" | 1000 lbs | 36 x 48" | 48 x 60" | 29 sec | 455 lbs |
| WXS36-15 | 1500 lbs | 41-1/4" | 5-1/4" | 1500 lbs | 36 x 48" | 48 x 60" | 36 sec | 470 lbs |
| Manufacturer | Presto |
|---|---|
| Catalog range | XS and WXS Electric Scissor Lift Tables |
| Documented configurations | 8 |
| Lowered Height | 5-1/4" |
Source: Presto General Catalog 2026, PDF page 18. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview

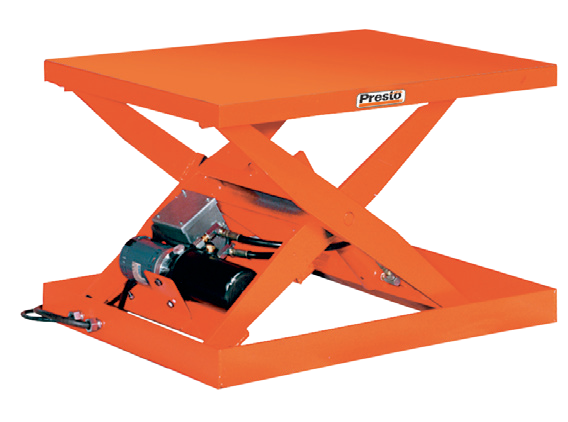

XS and WXS tables add electric lifting to a light-duty stationary format using a ⅓ HP, 115V single-phase power unit.
Select travel and platform geometry, then check end/side limits. The source describes intermittent duty; include cycle frequency when requesting a configuration quote.
Documentation & drawings
Reference: Presto General Catalog 2026, PDF page 18. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a XS and WXS Electric Scissor Lift Tables configuration?
Select travel and platform geometry, then check end/side limits. The source describes intermittent duty; include cycle frequency when requesting a configuration quote.
What should I provide for a XS and WXS Electric Scissor Lift Tables quote?
For XS and WXS Electric Scissor Lift Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
