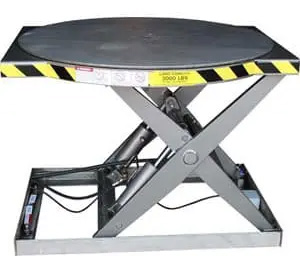

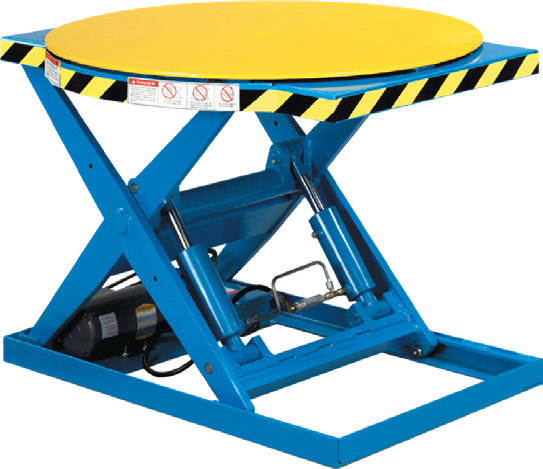

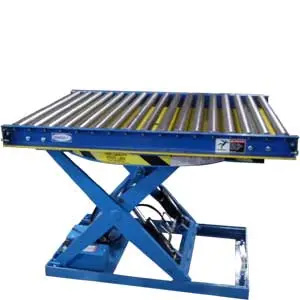

Rotating Scissor Lift Work Positioners — RM Series — catalog equipment photograph

Open an image to inspect its original detail.

Rotating Scissor Lift Work Positioners — RM Series — catalog equipment photographRotating Scissor Lift Work Positioners — RM Series — catalog equipment photographRotating Scissor Lift Work Positioners — RM Series — catalog equipment photograph

Specifications & options

Model / referenceCAPACITY LBSHEIGHT INCHES / LOWEREDHEIGHT INCHES / RAISEDPLATFORM SIZE / RAISEDLIFT SPEED (SEC) / RAISEDBASE FRAME / RAISEDMOTOR (HP) / RAISEDVOLTAGE / RAISED
BM-RM-2.5K-33R2,5006.5”32.5”43” Dia.1030” x 45”1.5115
BM-RM-3K-33R3,0006.5”32.5”43” Dia.1430” x 45”1.5115
BM-RM-3.5K-33R3,5006.5”32.5”43” Dia.1930” x 45”2230/460
BM-RMSS-2.5K-33R2,5006.5”32.5”43” Dia.1030” x 45”1.5115
BM-RMSS-3K-33R3,0006.5”32.5”43” Dia.1430” x 45”1.5115
BM-RMSS-3.5K-33R3,5006.5”32.5”43” Dia.1930” x 45”2230/460
Documented model configurations6
HEIGHT INCHES / LOWERED6.5”
HEIGHT INCHES / RAISED32.5”
PLATFORM SIZE / RAISED43” Dia.
BASE FRAME / RAISED30” x 45”
Catalog feature / option360 Degree rotating top with heavy duty cam rollers and exclusive Roto-Bearings.
Catalog feature / optionFork Pockets
Catalog feature / optionFork Entry Bars
Catalog feature / optionStainless Steel Top
Catalog feature / optionStainless Steel Round Top
Catalog feature / optionStainless Steel Base Frame
Catalog feature / optionStainless Steel Bearings
Catalog feature / optionStainless Steel Sub Top

Source: 2026 material handling catalog, PDF page 18. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Rotating Scissor Lift Work Positioners — RM Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: 360 Degree rotating top with heavy duty cam rollers and exclusive Roto-Bearings.; Cylinders with internal stops, hard chrome plated, polished shafting hydraulic cylinder piston rods; Surfaces degreased, descaled and finished with safety yellow and blue enamel; Integral gear pump with check valve, relief valve, solenoid valve; Smooth steel top with yellow and black safety strips; Rotation Brake; Fork Pockets; Fork Entry Bars; Spring Activated Detents; Special Paint; Stainless Steel Top; Rectangular Top; Stainless Steel Round Top; Stainless Steel Base Frame; Steel-It Scissor Arms; Stainless Steel Bearings; Water Proof Limit Switch; Stainless Steel Sub Top; Remote Power Unit; Water Resistant RPU; Stainless Power Box; Custom Options.

Model and option notes: BM-RMSS-2.5K-33R* 2,500 6.5” 32.5” 43” Dia. 10 30” x 45” 1.5 115; BM-RMSS-3K-33R* 3,000 6.5” 32.5” 43” Dia. 14 30” x 45” 1.5 115; BM-RMSS-3.5K-33R* 3,500 6.5” 32.5” 43” Dia. 19 30” x 45” 2 230/460; Each Selection Can Be Purchased With Hand Or Foot Controls * Stainless Steel/Steel-It Paint for “Wash Down Applications”; ADD -F FOR FOOT.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 18. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
