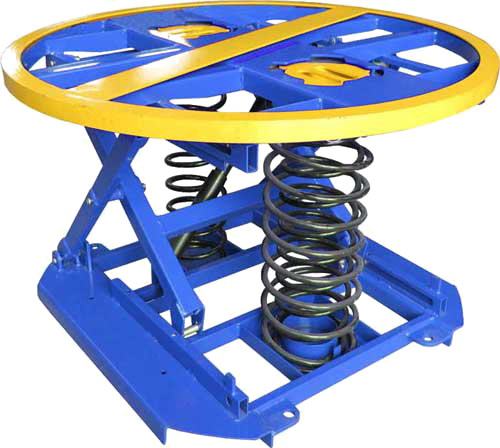

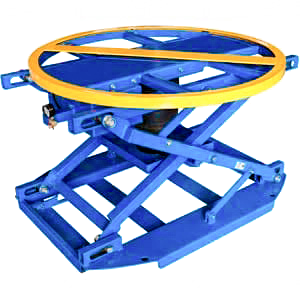

Spring and Pneumatic Pallet Level Loaders — catalog equipment photograph

Open an image to inspect its original detail.

Specifications & options

Model / reference	CAPACITY LBS / MIN	CAPACITY LBS / MAX	HEIGHT INCHES / LOWERED	HEIGHT INCHES / RAISED	PLATFORM SIZE / RAISED	BASE / RAISED
BM-LL-4.4K-28R	440	4,400	9.5”	28”	43” Dia.	36.6” x 45.25”
BM-LLA-4.4K-28R	440	4,400	9.5”	28”	43” Dia.	36.6” x 45.25”
BM-LLSS-4.4K-28R	440	4400	9.5”	28”	43” DIA.	36.6” x 45.25”

Documented model configurations	3
CAPACITY LBS / MIN	440
HEIGHT INCHES / LOWERED	9.5”
HEIGHT INCHES / RAISED	28”
BASE / RAISED	36.6” x 45.25”
Catalog feature / option	Low friction bearing supported turntable for nearside loading and unloading
Catalog feature / option	Spring range capacity from 440lbs - 4,400 lbs
Catalog feature / option	Fork pockets for easy relocation

Source: 2026 material handling catalog, PDF page 17. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Spring and Pneumatic Pallet Level Loaders is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: 360 ° rotating manual turn table with 43.7” diameter top; Low friction bearing supported turntable for nearside loading and unloading; Spring range capacity from 440lbs - 4,400 lbs; Fork pockets for easy relocation; Wide base for exceptional free-standing stability LEVEL.

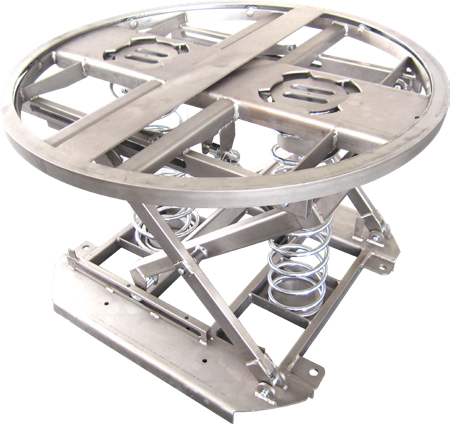

Model and option notes: BM-LLSS-4.4K-28R* 440 4400 9.5” 28” 43” DIA. 36.6” x 45.25”; * Stainless Steel.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 17. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.

Material Lift & Tilt Tables

Spring and Pneumatic Pallet Level Loaders

Manufacturer: Ballymore

Spring and Pneumatic Pallet Level Loaders. Documented model configurations: 3. CAPACITY LBS / MIN: 440. HEIGHT INCHES / LOWERED: 9.5”.

Find a model in this family Model for your quote

Select a reference to review its listed specifications. Tables may also include accessories and optional configurations.

Request a configuration quote

Documented model configurations: 3
CAPACITY LBS / MIN: 440
HEIGHT INCHES / LOWERED: 9.5”
HEIGHT INCHES / RAISED: 28”
BASE / RAISED: 36.6” x 45.25”

Review quote request →

Confirm configuration, quantity, freight and needed-by date with your request.

Questions about the application? (866) 410-7852

Prepare your technical requirements

Include quantity, application, required dimensions and load, power supply, site constraints, delivery address and timing.

For a custom configuration, have drawings or specifications ready. Our team can confirm the file-delivery method with your quote request.
