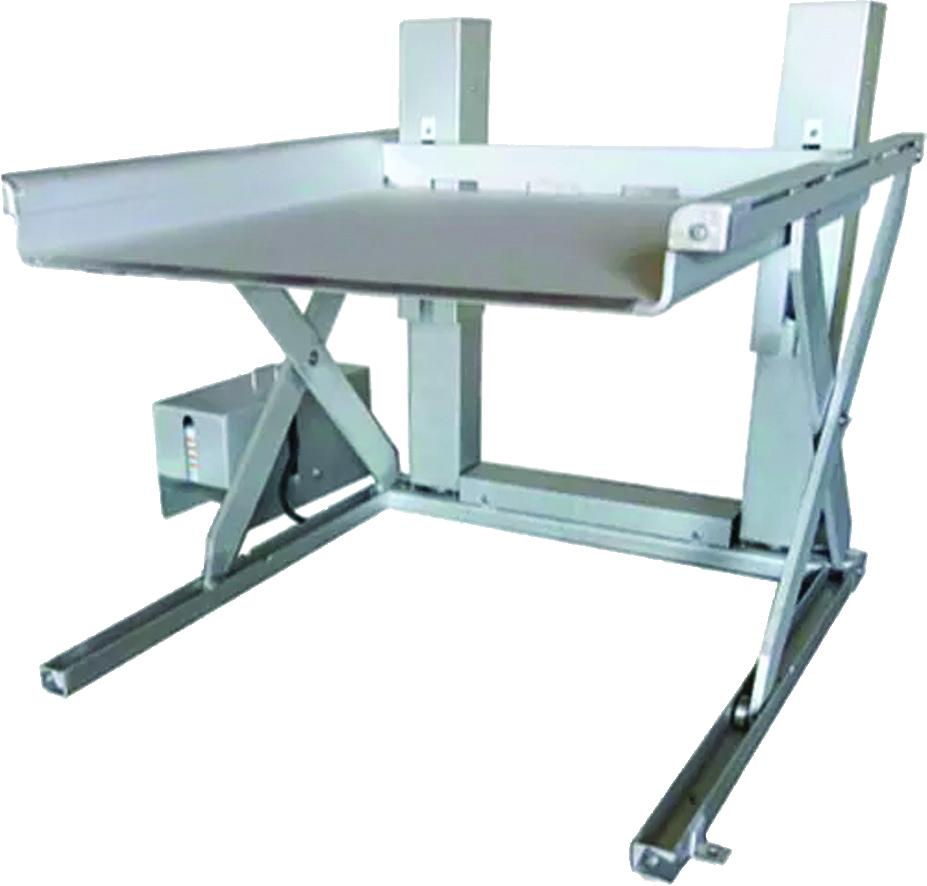

Stainless Steel Ground-Entry Lift Tables — SSGE Series — catalog equipment photograph

Open an image to inspect its original detail.

Stainless Steel Ground-Entry Lift Tables — SSGE Series — catalog equipment photographStainless Steel Ground-Entry Lift Tables — SSGE Series — catalog equipment photographStainless Steel Ground-Entry Lift Tables — SSGE Series — catalog equipment photograph

Specifications & options

Model / referenceVERTICAL TRAVELCAPACITYHEIGHT / LOWEREDHEIGHT / RAISEDPLATFORM SIZE / RAISEDLIFT SPEED (SEC) / RAISEDBASE FRAME / RAISEDMOTOR (HP) / RAISEDVOLTAGE / RAISED
BM-SSGE-2.5K-37R36”25000.5”37”42” X 48”2048.25” x 54.751115
VERTICAL TRAVEL36”
CAPACITY2500
HEIGHT / LOWERED0.5”
HEIGHT / RAISED37”
PLATFORM SIZE / RAISED42” X 48”
LIFT SPEED (SEC) / RAISED20
BASE FRAME / RAISED48.25” x 54.75
MOTOR (HP) / RAISED1
VOLTAGE / RAISED115
Catalog feature / optionHandrails
Catalog feature / optionCustom heights
Catalog feature / option3 phase voltage
Catalog feature / optionCustom capacities
Catalog feature / optionWash through platform
Catalog feature / optionBeveled Low-Profile Platform
Catalog feature / optionRelief Valve to Prevent Overloading
Catalog feature / option115 Volt Single Phase Hydraulic Drive W/Power Unit
Catalog feature / optionNarrow 2.5” Wide Sides for Easy Loading/Unloading
Catalog feature / optionRoll Through Platform

Source: 2026 material handling catalog, PDF page 45. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Stainless Steel Ground-Entry Lift Tables — SSGE Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Handrails; Tilting top; Mountd controls; Custom heights; Raised base; Stainless cylinders; 3 phase voltage; Custom capacities; Stainless cams; Safety locks; Wash through platform; Custom sizes; Heavy-Duty T304 S.S. Construction; Beveled Low-Profile Platform; Relief Valve to Prevent Overloading; Control Valve for Controlled Descent in Case of Electrical Failure; Self-Contained Power Unit; Safety Up-Down Foot Pedal Control; 115 Volt Single Phase Hydraulic Drive W/Power Unit; Narrow 2.5” Wide Sides for Easy Loading/Unloading; Totally Enclosed Dual (Synchronized) Hydraulic Lift Cylinders; Pickle Passivated Finish OPTIONS:; 3 Phase Power; Roll Through Platform.

Model and option notes: ADD -F FOR FOOT.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 45. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
