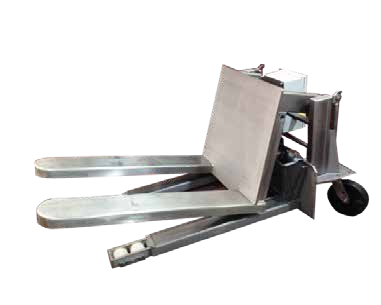

Stainless Steel Portable and Straddle Tote Tilters — catalog equipment photograph

Open an image to inspect its original detail.

Specifications & options

Capacity	2,500 lbs
Construction	Stainless Steel
Lowered height	6.5”
Dump height	34” to 48”
Forks	6” wide x 25” long 15” between forks
Power pack	24 volt DC with hand controls
Tilt angle	85°
Paint	White epoxy
Catalog feature / option	304L and 316L Stainless Steel or Epoxy finished
Catalog feature / option	Up to 90 degrees of tilt angle
Catalog feature / option	Straddle and fork over styles available
Catalog feature / option	2,500lbs capacity
Catalog feature / option	Ergonomics height of 32” to bottom of tote 110 V and 24 V DC Stainless Steel Portable Tote Tilter & Straddle Tote Tilter

Source: 2019 sanitary equipment catalog, PDF page 20. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Stainless Steel Portable and Straddle Tote Tilters is presented here with the configurations documented in the 2019 sanitary equipment catalog. Describe the required load, dimensions and operating arrangement so the supplier can confirm a suitable configuration.

Catalog features and options: 304L and 316L Stainless Steel or Epoxy finished; Up to 90 degrees of tilt angle; Straddle and fork over styles available; 2,500lbs capacity; Ergonomics height of 32” to bottom of tote 110 V and 24 V DC Stainless Steel Portable Tote Tilter & Straddle Tote Tilter.

The source describes standard and custom equipment. Confirm the current construction, control system, finish, installation details and selected operating limits with your quote.

Documentation & drawings

Reference: 2019 sanitary equipment catalog, PDF page 20. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2019 sanitary equipment catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.

Material Lift & Tilt Tables

Stainless Steel Portable and Straddle Tote Tilters

Manufacturer: Superlift

Stainless Steel Portable and Straddle Tote Tilters. Capacity: 2,500 lbs. Construction: Stainless Steel. Lowered height: 6.5”.

Find a model in this family Model for your quote

Select a reference to review its listed specifications. Tables may also include accessories and optional configurations.

Request a configuration quote

Capacity: 2,500 lbs
Construction: Stainless Steel
Lowered height: 6.5”
Dump height: 34” to 48”
Forks: 6” wide x 25” long 15” between forks

Review quote request →

Confirm configuration, quantity, freight and needed-by date with your request.

Questions about the application? (866) 410-7852

Prepare your technical requirements

Include quantity, application, required dimensions and load, power supply, site constraints, delivery address and timing.

For a custom configuration, have drawings or specifications ready. Our team can confirm the file-delivery method with your quote request.
