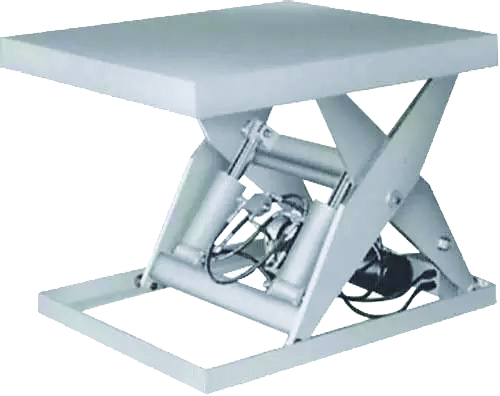

Stainless Steel Scissor Lift Tables — MSST Series — catalog equipment photograph

Open an image to inspect its original detail.

Specifications & options

Model / reference	VERTICAL TRAVEL	CAPACITY	HEIGHT / LOWERED	HEIGHT / RAISED	PLATFORM SIZE / RAISED	LIFT SPEED (SEC) / RAISED	BASE FRAME / RAISED	MOTOR (HP) / RAISED	VOLTAGE / RAISED
BM-SSS-4K-36R	27”	4000	9”	36”	42” X 48”	30	35.5” x 45”	1	115

VERTICAL TRAVEL	27”
CAPACITY	4000
HEIGHT / LOWERED	9”
HEIGHT / RAISED	36”
PLATFORM SIZE / RAISED	42” X 48”
LIFT SPEED (SEC) / RAISED	30
BASE FRAME / RAISED	35.5” x 45”
MOTOR (HP) / RAISED	1
VOLTAGE / RAISED	115
Catalog feature / option	T304 Stainless Steel Construction
Catalog feature / option	Relief Valve to Prevent Overloading

Source: 2026 material handling catalog, PDF page 45. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Stainless Steel Scissor Lift Tables — MSST Series is presented here with the configurations documented in the 2026 material handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: T304 Stainless Steel Construction; Relief Valve to Prevent Overloading; Control Valve for Controlled Descent; Self-Contained Power Unit; Integrally Mounted Hydraulic Drive W/Power Unit; Safety Up-Down Pendant Control; Dual, SST Powder Coated Hydraulic Cylinders; Pickle Passivated Finish.

Model and option notes: ADD -F FOR FOOT.

Documentation & drawings

Reference: 2026 material handling catalog, PDF page 45. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 material handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.

Material Lift & Tilt Tables

Stainless Steel Scissor Lift Tables — MSST Series

SKU / model reference: BM-SSS-4K-36R

Manufacturer: Ballymore

Stainless Steel Scissor Lift Tables — MSST Series. VERTICAL TRAVEL: 27”. CAPACITY: 4000. HEIGHT / LOWERED: 9”.

Find a model in this family Model for your quote

Select a reference to review its listed specifications. Tables may also include accessories and optional configurations.

Request a configuration quote

VERTICAL TRAVEL: 27”
CAPACITY: 4000
HEIGHT / LOWERED: 9”
HEIGHT / RAISED: 36”
PLATFORM SIZE / RAISED: 42” X 48”

Review quote request →

Confirm configuration, quantity, freight and needed-by date with your request.

Questions about the application? (866) 410-7852

Prepare your technical requirements

Include quantity, application, required dimensions and load, power supply, site constraints, delivery address and timing.

For a custom configuration, have drawings or specifications ready. Our team can confirm the file-delivery method with your quote request.
