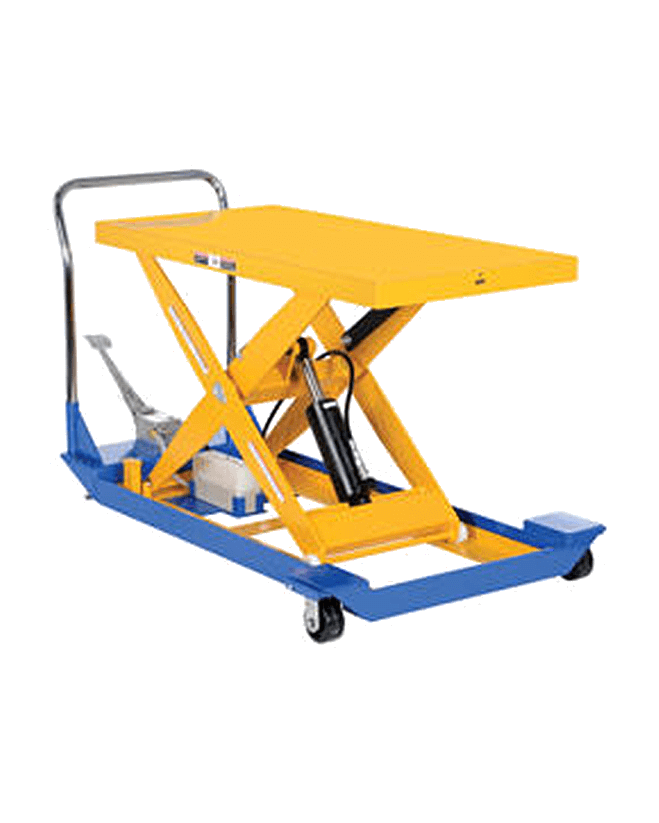

Vestil CART-23-10-DC manufacturer product photograph

Vestil manufacturer photograph: CART-23-10-DC shown within this product family. Confirm the selected model, finish and options with your quote.

Specifications & options

Platform Width (Inches)24
Platform Length (Inches)36, 48
Lowered Height (Inches)11.25, 9.25
Raised Height (Inches)32, 42.5
Power12V DC, Foot Pump
Uniform Capacity (lbs)1000, 1500
Manufacture Part NumberCART-23-10-DC, CART-23-10-M, CART-23-15-DC, CART-23-15-M, CART-24-10-DC, CART-24-10-M, CART-24-15-DC, CART-24-15-M

Specifications reflect the existing supplier catalog. Confirm the selected model and options before ordering.

PRODUCT INFORMATION

Equipment overview

Tables provide unparalleled ergonomic support in lifting, palletizing, loading, and unloading applications. Carts are raised or lowered with either a 12V DC powered motor or a manual two speed foot pump. Units roll smoothly with two (2) rigid and two (2) swivel 4″ x 2″ phenolic casters with brakes. Push handle is removable. Internal DC powered electric motor and one (1) 12V battery is included on DC units. Electric motor is rated at 1600 watts. Built-in battery charger is included (operated on 115V AC power). Push buttons to raise and lower lift are located on the power unit. Hand control on coil cord is also standard. Platform is equipped with perimeter pinch point guard for OSHA compliance.

Documentation & drawings

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

What specifications are listed for 31-10-0324?

Platform Width (Inches): 24; Platform Length (Inches): 36, 48; Lowered Height (Inches): 11.25, 9.25. Confirm the complete selected configuration before ordering.

How do I request a quote for 31-10-0324?

Include the product name and SKU 31-10-0324, quantity, application, full delivery address and needed-by date. Add required dimensions, load and site constraints where relevant.

Can you confirm freight and delivery timing?

Freight and delivery timing need to be confirmed for the selected configuration, quantity and destination. Include access restrictions and unloading requirements with your quote request.
