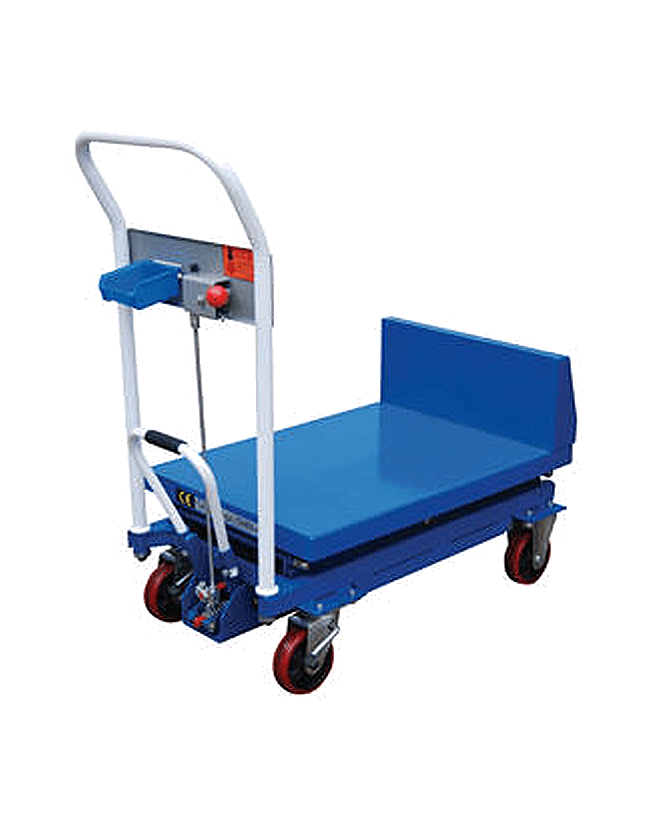

Vestil CART-1000-LT manufacturer product photograph

Vestil manufacturer photograph: CART-1000-LT shown within this product family. Confirm the selected model, finish and options with your quote.

Specifications & options

Platform Width (Inches)19.5, 21.5, 22, 24
Platform Length (Inches)30, 33.25, 33.5, 36, 40
Lowered Height (Inches)13, 14, 16.5, 17.5
Raised Height (Inches)31, 35, 36
Maximum Degree Of Tilt30, 40, 45
Uniform Capacity (lbs)1000, 400, 500, 600
Manufacture Part NumberCART-1000-LT, CART-1000-LT-PSS, CART-400-LT, CART-500-LT, CART-600-LT

Specifications reflect the existing supplier catalog. Confirm the selected model and options before ordering.

PRODUCT INFORMATION

Equipment overview

Models CART-500-LT, CART-1000-LT, and CART-1000-LT-PSS have a unique design which allows user to RAISE and TILT materials to an ergonomic position for better posture and operator comfort. The manual hydraulic foot pump controls the platform lift, lower, and tilt. A manual selector valve is used to control the lift/lower sequence independently from the tilt sequence. The platform includes a 6½” high retaining lip on model CART-500-LT and 7″ high on CART-1000-LT series. Rolls on two rigid and two swivel 5″ poly casters. Models CART-400-LT and CART-600-LT are elevated by means of a foot actuated hydraulic cylinder. As the table is raised, it simultaneously tilts to an angle of 45° at full elevation. Built in retaining lip keeps containers in place. Units roll on 5″ polyurethane casters, two rigid and two swivel with brakes. Partially Stainless Steel: Platform, handle, caster brackets & hardware are all stainless steel. pump assembly, scissor legs, and foot pedal are zinc plated.

Documentation & drawings

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

What specifications are listed for 31-10-0368?

Platform Width (Inches): 19.5, 21.5, 22, 24; Platform Length (Inches): 30, 33.25, 33.5, 36, 40; Lowered Height (Inches): 13, 14, 16.5, 17.5. Confirm the complete selected configuration before ordering.

How do I request a quote for 31-10-0368?

Include the product name and SKU 31-10-0368, quantity, application, full delivery address and needed-by date. Add required dimensions, load and site constraints where relevant.

Can you confirm freight and delivery timing?

Freight and delivery timing need to be confirmed for the selected configuration, quantity and destination. Include access restrictions and unloading requirements with your quote request.
