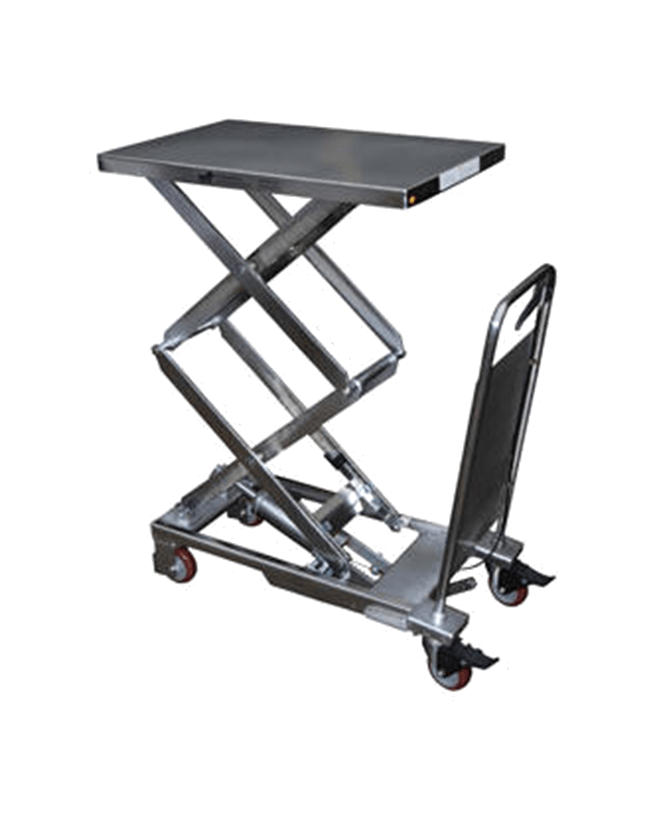

Vestil CART-1000-LD-PSS manufacturer product photograph

Vestil manufacturer photograph: CART-1000-LD-PSS shown within this product family. Confirm the selected model, finish and options with your quote.

Specifications & options

Platform Width (Inches)	17.5, 19.75, 20, 24, 31.5
Platform Length (Inches)	27.5, 32.5, 35.5, 39.5, 47, 47.5, 63
Lowered Height (Inches)	10, 15, 15.5, 17, 19, 8.75
Raised Height (Inches)	29, 35.5, 36, 39, 40, 50.75, 51, 68
Uniform Capacity (lbs)	1000, 1500, 1750, 2000, 220, 400, 750, 800
Manufacture Part Number	CART-1000-LD-PSS, CART-1000-PSS, CART-1500-D-TS-PSS, CART-1750-PSS, CART-200-D-PSS, CART-2000-PSS, CART-400-PSS, CART-750-PSS, CART-800-D-PSS

Specifications reflect the existing supplier catalog. Confirm the selected model and options before ordering.

PRODUCT INFORMATION

Equipment overview

Partially Stainless Steel Carts are available for clean or corrosive environments. The platform, frame, handle, caster rigs, and hardware are all stainless steel. Scissor legs, pump assembly, and hydraulic cylinders are zinc plated. Wheels are poly on poly. Pump assembly, scissor legs, & foot pedal are zinc plated. platform, handle, base frame caster rig, & hardware are all stainless steel.

Documentation & drawings

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

What specifications are listed for 31-10-0277?

Platform Width (Inches): 17.5, 19.75, 20, 24, 31.5; Platform Length (Inches): 27.5, 32.5, 35.5, 39.5, 47, 47.5, 63; Lowered Height (Inches): 10, 15, 15.5, 17, 19, 8.75. Confirm the complete selected configuration before ordering.

How do I request a quote for 31-10-0277?

Include the product name and SKU 31-10-0277, quantity, application, full delivery address and needed-by date. Add required dimensions, load and site constraints where relevant.

Can you confirm freight and delivery timing?

Freight and delivery timing need to be confirmed for the selected configuration, quantity and destination. Include access restrictions and unloading requirements with your quote request.

Scissor Lifts & Lift Tables

Vestil Partially Stainless Steel Hydraulic Elevating Carts

SKU / model reference: 31-10-0277

Manufacturer: Vestil

Vestil Partially Stainless Steel Hydraulic Elevating Carts. Platform Width (Inches): 17.5, 19.75, 20, 24, 31.5; Platform Length (Inches): 27.5, 32.5, 35.5, 39.5, 47, 47.5, 63; Lowered Height (Inches): 10, 15, 15.5, 17, 19, 8.75. Review the equipment information below to confirm the selected configuration.

Platform Width (Inches): 17.5, 19.75, 20, 24, 31.5
Platform Length (Inches): 27.5, 32.5, 35.5, 39.5, 47, 47.5, 63
Lowered Height (Inches): 10, 15, 15.5, 17, 19, 8.75
Raised Height (Inches): 29, 35.5, 36, 39, 40, 50.75, 51, 68
Uniform Capacity (lbs): 1000, 1500, 1750, 2000, 220, 400, 750, 800

Request a technical quote ↗

Review quote request →

Confirm configuration, quantity, freight and needed-by date with your request.

Questions about the application? (866) 410-7852

Prepare your technical requirements

Include quantity, application, required dimensions and load, power supply, site constraints, delivery address and timing.

For a custom configuration, have drawings or specifications ready. Our team can confirm the file-delivery method with your quote request.
